Engine oil level indicator

This information is displayed for a few seconds when the ignition is switched

This information is displayed for a few seconds when the ignition is switched on, after the service information.

if the vehicle is on level ground and the engine has been off for more than 30 minutes. The level shown will only be correct if the vehicle is on level ground and the engine has been off for more than 30 minutes.

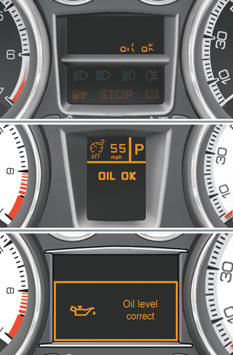

Oil level correct

Oil level low

Oil level low

This is indicated by the flashing of "OIL" , linked with the service warning

This is indicated by the flashing of "OIL" , linked with the service warning lamp, accompanied by an audible signal and a message in the multifunction screen.

If the low oil level is confirmed by a check using the dipstick, the level must be topped up to prevent damage to the engine.

Oil level indicator fault

This is indicated by the flashing of "OIL--" .

This is indicated by the flashing of "OIL--" .

Contact a PEUGEOT dealer or a qualified workshop.

Dipstick

Refer to the "Checks" section to locate the dipstick and the oil filler cap on your engine.

There are 2 marks on the dipstick:

There are 2 marks on the dipstick:

- A = max; never exceed this level (risk of damage to the engine),
- B = min; top up the level via the oil filler cap, using the grade of oil suited to your engine.
