Locations for child seats secured using the seat belt

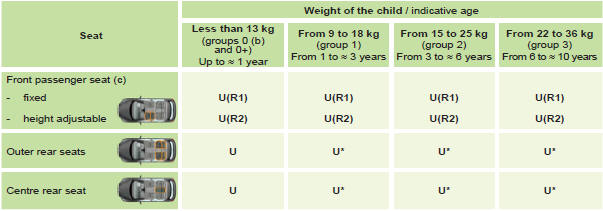

In accordance with European regulations, this table indicates the options for installing child seats secured using the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using
the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed
on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
U : seat suitable for the installation of a child seat secured using the seat
belt and universally approved "rear facing" and/or "forward facing".
U(R1) : identical to U , with the vehicle's seat adjusted to the intermediate
longitudinal position.
U(R2) : identical to U , with the vehicle's seat adjusted to the highest position and moved back fully.
* The seat's head restraint must be removed and stored.
