Locations for ISOFIX child seats (308 saloon, 308 SW with bench rear seat)

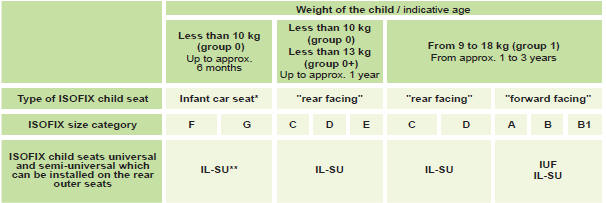

In accordance with European Regulations, this table indicates the options for

In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings.

In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G , is indicated on the child seat next to the ISOFIX logo.

IUF: seat suitable for the installation of an Isofix U niversal seat, " F orward

IUF: seat suitable for the installation of an Isofix U niversal seat, " F orward facing" secured using the upper strap.

IL-SU: seat suitable for the installation of an Isofix S emi- U niversal seat either:

- "rear facing" fitted with an upper strap or a stay,

- "forward facing" fitted with a stay,

- an infant car seat fitted with an upper strap or a stay.

For advice on securing of the upper strap, refer to the paragraph "ISOFIX mountings".

* Infant car seats and "car cots" cannot be installed on the front passenger seat.

** The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.
