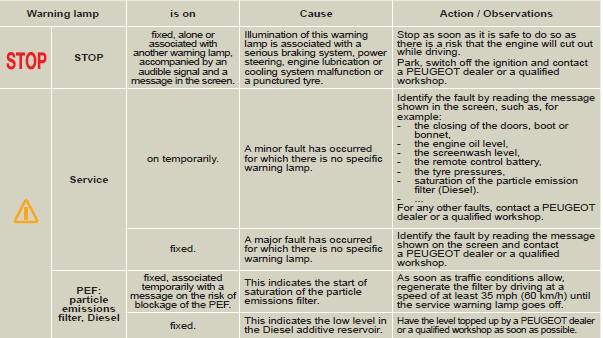

Warning lamps
When the engine is running or the vehicle is being driven, the illumination of one of the following warning lamps indicates a fault which requires action on the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer or a qualified workshop.
See also:
Courtesy lamps
1. Front courtesy lamp
2. Map reading lamps
3. Rear side reading lamps
4. Rear courtesy lamp
Front and rear courtesy lamps
In this position, the courtesy lamp
comes on gradually:
- when t ...
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding
system has been switched off intentionally. This is may be accompanied by an audible
signal and a message in ...
Instruments and controls
1. Audio and telematic system steering mounted controls.
2. Steering lock and ignition.
3. Wiper / screenwash / trip computer control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn. ...
